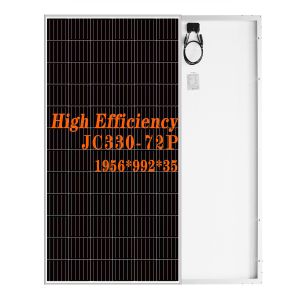

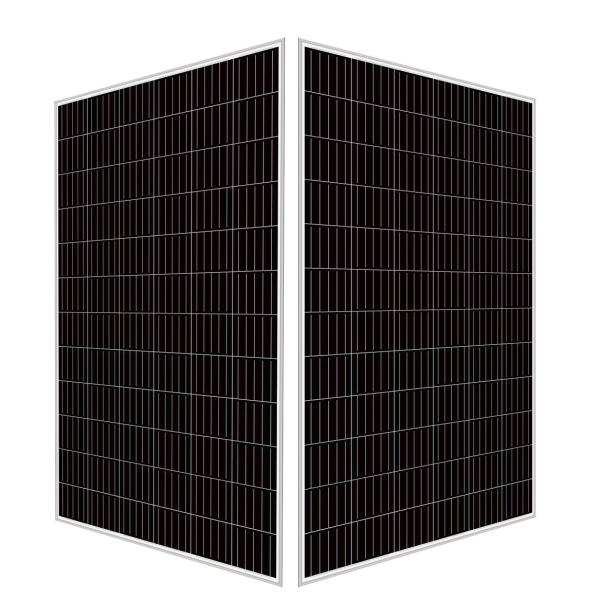

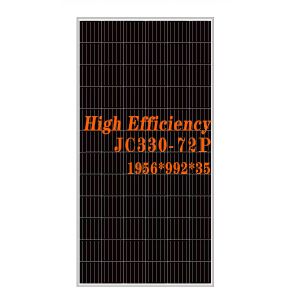

Polycrystalline 340W Solar Panel Module Anodized Aluminium Alloy

    Buy cheap Polycrystalline 340W Solar Panel Module Anodized Aluminium Alloy from wholesalers

    Buy cheap Polycrystalline 340W Solar Panel Module Anodized Aluminium Alloy from wholesalers
    • Buy cheap Polycrystalline 340W Solar Panel Module Anodized Aluminium Alloy from wholesalers
    • Buy cheap Polycrystalline 340W Solar Panel Module Anodized Aluminium Alloy from wholesalers
    • Buy cheap Polycrystalline 340W Solar Panel Module Anodized Aluminium Alloy from wholesalers

    Polycrystalline 340W Solar Panel Module Anodized Aluminium Alloy

    Ask Lasest Price
    Brand Name : SUNERISE
    Model Number : JC340-72P
    Certification : TUV , CQC , CE , ISO etc
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 1MW,1Month
    Delivery Time : Within 10 work days
    • Product Details
    • Company Profile

    Polycrystalline 340W Solar Panel Module Anodized Aluminium Alloy

    China Polycrystalline Europe Standard 340W Solar Panel Module


    Features:


    1. Use A-grade solar cell with high efficiency;
    2. High transmittance, low iron tempered glass with enhanced stiffness and impact resistance;
    3. Anodized aluminum alloy frame with high mechanical strength for easy installation;
    4. Anti-aging EVA and high flame resistant Back Sheet (TPT), to provide long-life and enhanced cell performance;
    5. Outstanding electrical performance under high temperature and low irradiance conditions;
    6. 100% apply EL(electroluminescence) technology;
    7. 5 years limited warranty, 10 years limited warranty for 90% power output, 25 years limited warranty for 80% power output;
    8. With CE, ISO9001: 2008 certificate;


    Technical Specification Data

    Model
    JC335-72P
    JC340-72P
    JC345-72P
    JC350-72P
    JC355-72P
    Rated Maximum Power at STC
    335W
    340W
    345W
    350W
    355W
    Open Circuit Voltage(Voc/V)
    46.3
    46.5
    46.7
    46.9
    47.0
    Maximum Power Voltage(Vmp/V)
    37.9
    38.2
    38.4
    38.5
    38.7
    Short Circuit Current(Isc/A)
    9.36
    9.45
    9.5
    9.6
    9.69
    Maximum Power Current(Imp/A)
    8.84
    8.90
    9.00
    9.09
    9.17
    Module Efficiency
    17.3%
    17.5%
    17.8%
    18.0%
    18.3%
    Standard Test Condition(STC)
    Irradiance 1000w/m2, Cell Temperature 25 Centigrade, Air Mass 1.5

    Polycrystalline 340W Solar Panel Module Anodized Aluminium Alloy

    Polycrystalline 340W Solar Panel Module Anodized Aluminium Alloy

    1. Your inquiry related to our products or prices will be replied in 24hours.


    2. OEM&ODM, any your customized lightings we can help you to design and put into product.


    3. Distributoership are offered for your unique design and some our current models


    4. Protection of your sales area, ideas of design and all your private information



    Payment Term


    T/T

    EXW

    30% T/T in advance, paid the balance before shipment

    FOB
    CFR(C&F)

    30% T/T in advance, paid the balance against copy of B/L

    CIF
    L/CL/C amount above 50,000 usd, we can accept L/C at sight
    PayPal

    Amount lower than 3000usd

    PayPal
    Delivery Time17~20days after receiving payment for one container
    Polycrystalline 340W Solar Panel Module Anodized Aluminium Alloy

    Solar Cells


    High efficiency 5BB PV cell
    Uniform color
    Anti-PID
    Germany standard Cell
    Full test

    Junction box


    Conventional standalone edition and engineering custom edition
    Quality diode ensures module running safety
    IP67 protection level
    Heat dissipation
    Long service life

    Polycrystalline 340W Solar Panel Module Anodized Aluminium Alloy
    Polycrystalline 340W Solar Panel Module Anodized Aluminium Alloy

    Glass


    Antireflective glass
    Translucency of normal luminance is increased 2%
    Module efficiency is increased 2%
    Self-clean function
    Service life 25 years

    Frame


    Stock-size
    Silvery and black
    Thickness 30/35/40/50mm
    Stress test


    Polycrystalline 340W Solar Panel Module Anodized Aluminium Alloy
